The pand designs are:
  • Emsco
  • Gardner-Denver
  • National
  • Oilwell
  • Ideco
    • Hot products:
  • Emscoarctile

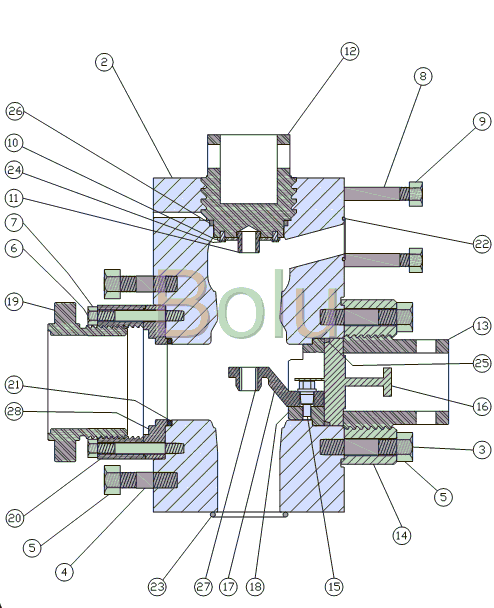

    • EMSCO FB – 1300 & FB – 1600




    Item



    Part No.



    Description

    		 Qty

    per Pump
    1 BL-6316-0357-00 Fluid Module, Studded (Included Items 2 – 9) (3)
    2 BL-6316-0356-00 Fluid Module, Only 3
    3 BL-7507-2210-00 Stud – Threaded Ring 30
    4 BL-7507-2201-00 Stud – Frame 18
    5 BL-7601-0630-17 Nut – Frame, Threaded Ring 48
    6 BL-7507-2013-00 Stud – Liner Lock 36
    7 BL-7601-0610-18 Nut – Liner Lock 36
    8 BL-7507-2108-00 Stud – Discharge Manifold 12
    9 BL-7601-0630-24 Nut – Discharge Manifold 12
    10 BL-6397-0603-00 Retainer Plate 3
    11 BL-6397-0575-00 Upper Valve Guide 3
    12 BL-6316-0039-00 Valve Cover 3
    13 BL-6316-0362-00 Cylinder Head 3
    14 BL-6316-0361-00 Cylinder Threaded Ring 3
    15 BL-6316-0360-00 Lock Bolt – Lower Valve Guide 3
    16 BL-6316-0364-00 Cylinder Head Plug 3
    17 BL-6316-0354-00 Lower Valve Guide with Bushing 3
    18 BL-6316-0363-00 Alignment Ring 3
    19 BL-6316-0367-00 Liner Lock 3
    20 BL-6316-0366-00 Liner Threaded Ring 3
    21 BL-6316-0373-00 Seal – Wear Plate, Liner 3
    22 BL-7602-1600-25 Seal – Discharge Manifold 3
    23 BL-7602-1600-61 Seal – Suction Manifold 3
    24 BL-7501-0051-00 Retainer Bolt 12
    25 BL-6316-0369-00 Seal – Cylinder Head Plug 3
    26 BL-6316-0092-00 Seal – Valve Pot Cover 3
    27 BL-6316-0096-00 Valve Guide Bushing 3
    28 BL-6316-0365-00 1Wear Plate 3
