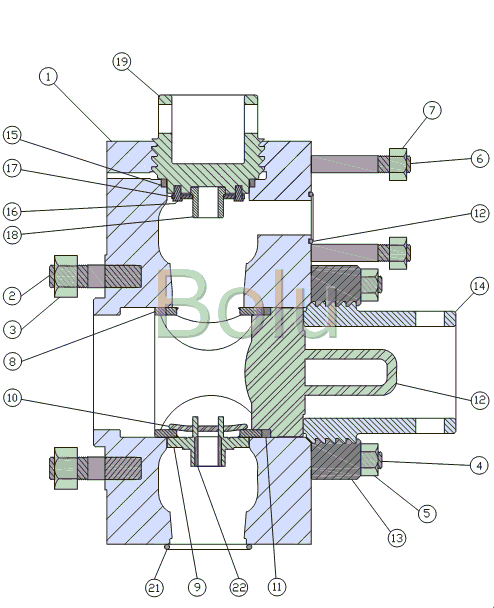

EMSCO F-350, F-500 & F-650
|
Item |
Part No. |
Description |
Qty per Pump |
| BL-6318-0151-00 | Fluid Module, Studded (Included Items 2 – 7) | (3) | |
| 1 | Fluid Module, Only | 3 | |
| 2 | BL-7507-2207-00 | Stud – Frame | 18 |
| 3 | BL-7601-0630-17 | Nut – Frame | 18 |
| 4 | BL-7507-3402-00 | Stud – Threaded Ring | 36 |
| 5 | BL-7601-0630-26 | Nut – Threaded Ring | 36 |
| 6 | BL-7507-3407-00 | Stud – Discharge Manifold | 12 |
| 7 | BL-7601-0630-26 | Nut – Discharge Manifold | 12 |
| 8 | BL-6318-0148-00 | Liner Cage | 3 |
| 9 | BL-6318-0177-00 | Lower Valve Guide with Bushing | 3 |
| 10 | BL-6318-0153-00 | Locking Clip | 3 |
| 11 | BL-7602-2200-34 | Gasket – Liner | 6 |
| 12 | BL-6318-0158-00 | Cylinder Head Plug | 3 |
| 13 | BL-6318-0130-00 | Threaded Ring | 3 |
| 14 | BL-6318-0157-00 | Cylinder Head | 3 |
| 15 | BL-6310-0084-00 | Gasket – Valve Pot Cover | 3 |
| 16 | BL-7501-0051-00 | Retainer Bolt | 12 |
| 17 | BL-6310-0133-00 | Retainer Plate | 3 |
| 18 | BL-6397-0602-00 | Upper Valve Guide | 3 |
| 19 | BL-6310-0016-01 | Valve Pot Cover | 3 |
| 20 | BL-7602-1600-23 | Gasket – Discharge Manifold | 3 |
| 21 | BL-7602-1600-33 | Gasket – Suction Manifold | 3 |
| 22 | BL-6318-0155-00 | Lower Valve Guide Bushing | 3 |
