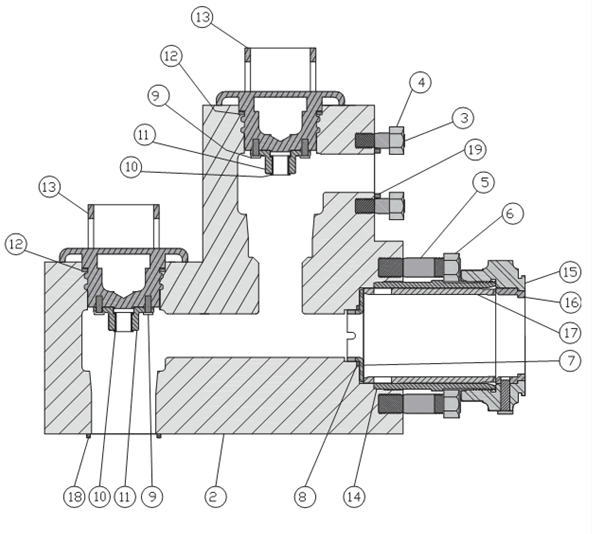

OILWELL A-850-PT,A-1100-PT,A-1400-PT,A-1700-PT

Item

Part No.

Description

Qty

per Pump

1

BL-10-300-181

Discharge Module, Studded (Included Items 2 – 6)

(3)

2

Discharge Module, Only

3

3

BL-49-001-292

Stud – Discharge Manifold

12

4

BL-75-511-754

Nut – Discharge Manifold

12

5

BL-49-002-837

Stud – Frame

12

6

BL-75-510-126

Nut – Frame

12

7

BL-10-300-184

1Wear Plate – Liner

6

8

BL-20-100-008

Gasket – Liner Wear Plate

6

9

BL-75-632-234

Cap Screw, Self Locking

24

10

BL-20-200-004

Valve Guide Bushing

6

11

BL-10-300-004

Valve Guide

6

12

BL-10-300-011

Gasket – Valve Cover

6

13

BL-10-300-005

Valve Cover

6

14

BL-10-300-183

Liner Adapter

3

15

BL-10-303-092

Nut – Liner Adapter (A850-PT, A1100-PT only)

3

BL-10-300-182

Nut – Liner Adapter (A1400-PT, A1700-PT only)

3

16

BL-10-300-185

Spacer Ring – Liner

3

17

BL-10-303-091

2Centering Sleeve – Liner (A850-PT, A1100-PT only)

3

BL-10-300-186

2Centering Sleeve – Liner (A1400-PT, A1700-PT only)

3

18

BL-10-300-201

Seal – Suction Manifold

3

19

BL-99-609-345

Seal – Discharge Manifold

3
