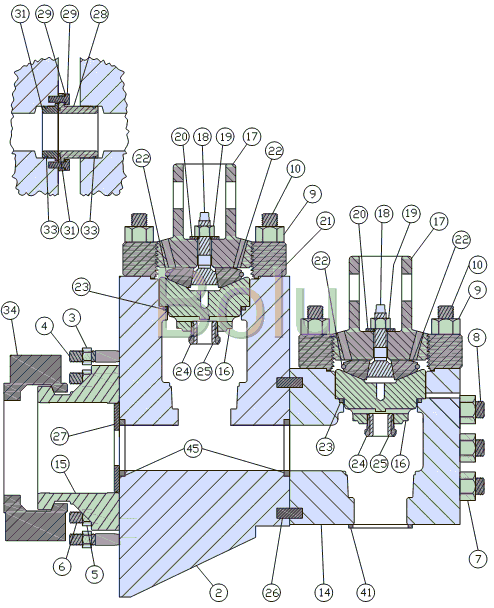

NATIONAL 12-P-160

Item

Part No.

Description

Qty

per Pump

1

BL-1292240

Discharge Module, Studded (Included Items 2 – 10)

(3)

2

BL-1292241

Discharge Module, Only

3

3

BL-6300220

Nut – Frame

30

4

BL-2408029

Stud – Frame

30

5

BL-6300180

Nut – Liner Bushing

18

6

BL-2408028

Stud – Liner Bushing

18

7

BL-6300281

Nut – Suction to Discharge Module

18

8

BL-2408033

Stud – Suction to Discharge Module

18

9

BL-6300240

Nut – Threaded Ring

72

10

BL-2408027

Stud – Threaded Ring

72

11

BL-1292243

Suction Module, Studded (Included Items 9, 10, 12)

(3)

12

BL-1292244

Suction Module, Only

3

15

BL-1292165

Bushing – Liner

3

16

BL-1292174

Seal Retainer

6

17

BL-1292172

Valve Cover

6

18

BL-1292178

Screw – Wedge Adjusting

6

19

BL-6300182

Nut – Wedge Adjusting

6

20

BL-1292171

Washer – Wedge Adjusting

6

21

BL-1292176

Thread Ring

6

22

BL-1292268

Wedge Assembly

6

23

BL-1540127

Gasket – Valve Cover

6

24

BL-1292140

Holder – Valve Guide

6

25

BL-1292141

Insert – Valve Guide

6

26

BL-6511416

Pin, Dowell

6

27

BL-1292266

1Plate – Wear

3

28

BL-1292252

Connector – Discharge

2

29

BL-7000307-11

Screw, Hex Head

16

30

BL-7619050

Washer, Lock

16

31

BL-1292253

Adapter – Discharge Connector

2

32

BL-2410031-433

Packing, Rectangular

2

33

BL-2410031-437

Packing, Rectangular

4

34

BL-1292166

Clamp – Liner

3

41

BL-1540851

Seal – Suction Manifold

3

42

BL-1292262

Spacer – Discharge, Studded (Included Items 43-44)

2

43

BL-2408015

Stud – Discharge Spacer

16

45

BL-1292257

Seal – Module, Wear Plate

6
