Hydraulic profile control,Hydraulic profile control water shutoff pump,Profile control water shutoff equipment

Model ModelⅠ ModelⅡ ModelⅢ ModelⅣ ModelⅩ Motor power 55KW 75KW 55KW 73.5KW Diesel engine 15KW Power 380V 50HZ  AC Three Phase(Allowed tolerance: +5%,-10%) Way of displacement Constant power variable Manual adjustment Constant power variable Ration Rated flow rate 10m3/h 13 m3/h 10 m3/h 13 m3/h 2 m3/h Rated pressure（Mpa） 20 30 35 40 25 20 25 Diameter of suction pipe Φ127mm(5″) Φ50mm(2″) Diameter of discharge pipe Φ64mm(2-7/8″母油管扣) Φ50mm 2-3/8″母油管扣 Total weight 6t 6.5t 6t 6.8t 1.5t L×W×H(mm) 3500×2000×1500 2300×1400×1200 Way of installation 撬装式A Applicable plugging agents All plugging agents for profile control water plugging:CSE-1,three-phase foam. Class G oil well cement. Sawdust. swellable particle.sludge, bentonite. Polyacrylamide, elm bark powder, cellulose.etc. Applicable wells Water well profile control water plugging. Oil well water plugging, polymer injection station polymer flooding

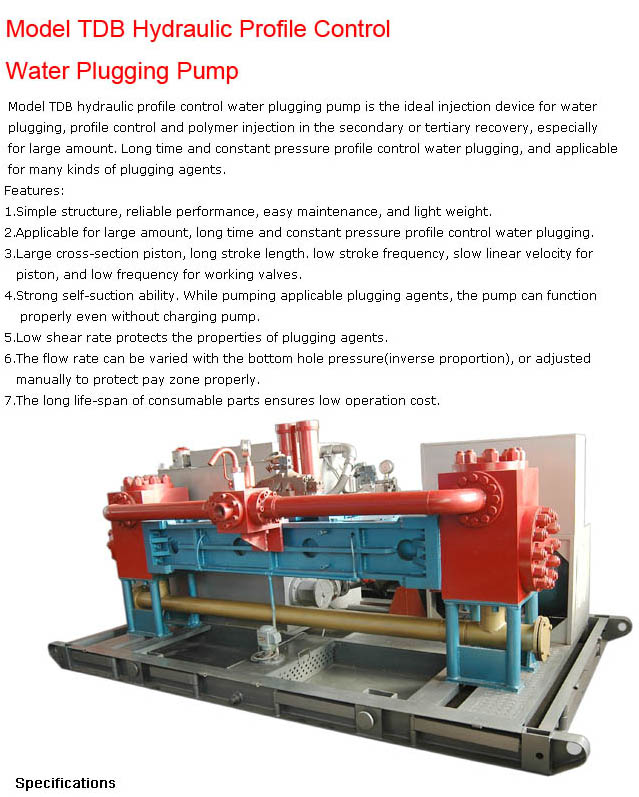

hydraulic profile control water shutoff pump, is a kind of dual-cylinder single-acting reciprocating pump. Hydraulic profile control water shutoff pump has adopted the hydraulic cylinder instead of the conventional crank and link slider mechanism. Hydraulic profile control water shutoff pump has long stoke and low strokes per minute so that it is suitable for the profile control water shutoff technology with large dose, long time and stable pressure. Because of its large piston area, long stroke, low strokes per minute, low speed of piston moving line, the hydraulic profile control water shutoff pump also has such advantages as strong self-suction capacity, long service life of wearing parts, small shearing force on plugging agent and etc.
